TM101
Tarapath

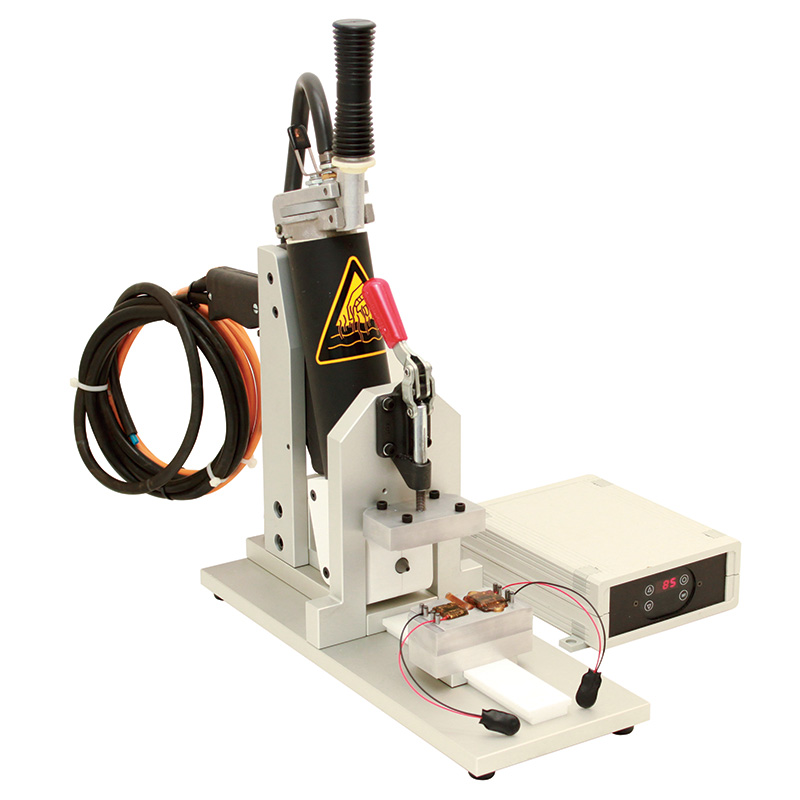

The TM101 Moulding Station is designed to operate In conjunction with the OM100 Hand Gun, creating a simple and low cost moulding machine. The TM101 is intended for prototyping and low volume moulding production.
Operation of the station is safe and simple. The bottom part of the tool is fitted onto a sliding base, the top part of the tool is secured to a toggle action mechanism that closes the tool and locks it in position.
Operating temperature Ambient up to 250°C
Melting Tank 200ccm
Electrical connection 230VAC / 50Hz
Power input 350 W
Min air pressure 0.55 MPa / 5.0 bar
Footprint 700mm x 510mm
