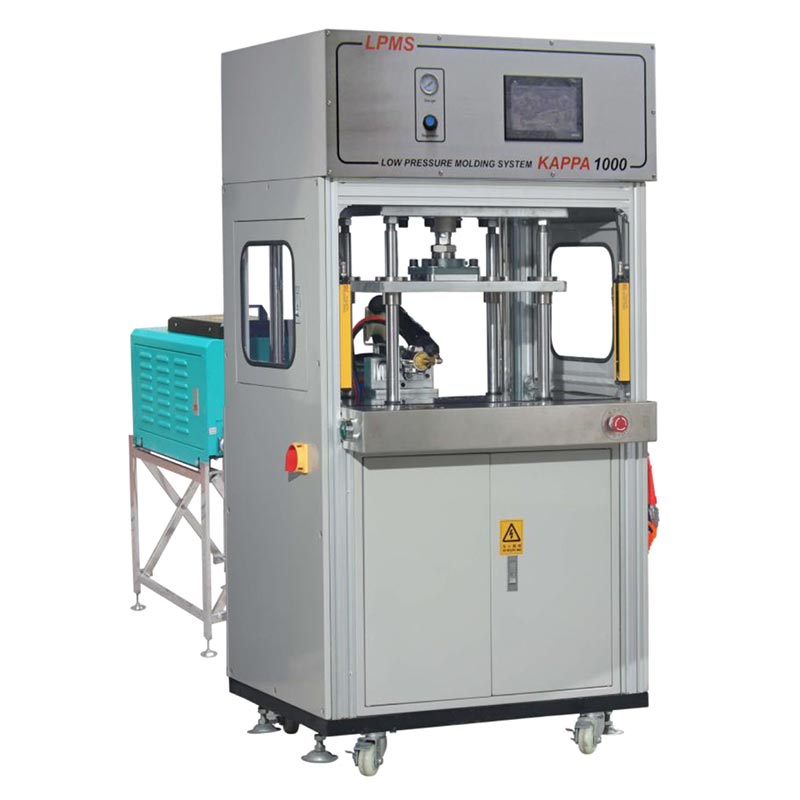

KAPPA 1000
LPMS
The Kappa 1000 is a high-volume production machine. The separate tank gives greater flexibility allowing multiple tanks to be used with the same machine, enabling quick changeover of materials, meaning different colours can be used easily.
This flexibility means that tanks can be interchanged between different equipment types also. This can be useful in a dynamic production facility.
Operating temperature Ambient up to 250°C
Melting Tank Melt on demand 7L x 1
Clamping force 1.2T
Electrical connection 200~240VAC / 1 Phase / 50 or 60Hz
Power input 4.5kW
Min air pressure 0.5 MPa / 73 Psi
Footprint 970mm x 1700mm
Mould set size 230mm x 120mm x 150mm / 25kg
Max Mould Set Size 300mm x 200mm x 150mm
